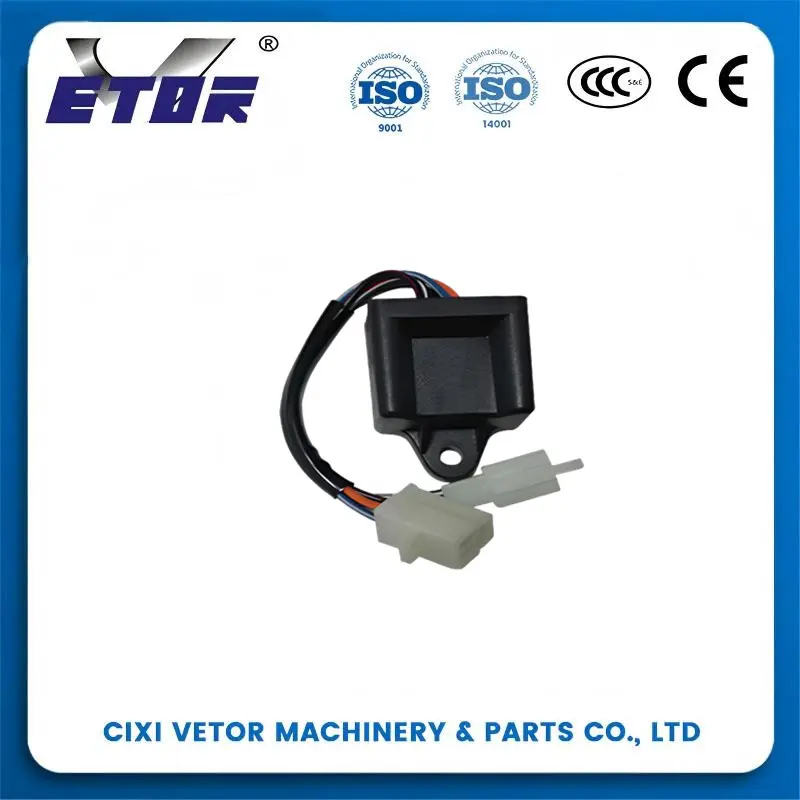

The CG125 CDI is an advanced ignition system upgrade over traditional contact-breaker ignition setups. It primarily consists of a capacitor, a trigger circuit, and a high-voltage output stage. The capacitor stores electrical energy, which is then rapidly discharged through the ignition coil when triggered by the engine's rotation sensor. This process creates a high-voltage spark that ignites the fuel within the engine.
The CDI unit is compactly designed to fit into the limited space available on a CG125 motorcycle. It is typically encased in a durable plastic or resin-based housing that protects the internal electronic components from dust, moisture, and mechanical vibrations during the motorcycle's operation.
The CDI unit provides a consistent and powerful spark, ensuring reliable engine starting, even in cold conditions or after long periods of non-use. This reliability is crucial for daily commuting and other regular motorcycle operations.
Unlike traditional contact-breaker ignition systems that are prone to wear and tear due to moving parts, the CG125 CDI has no mechanical contacts. This significantly reduces the risk of component failure and extends the overall lifespan of the ignition system.
By delivering a precisely timed and high-energy spark, the CDI enhances the engine's combustion efficiency. This results in better fuel economy, increased power output, and smoother engine performance across different RPM ranges.
The enclosed housing design makes the CDI unit resistant to dust, water splashes, and temperature variations. This ensures that it can function optimally in various riding conditions, from urban environments to more rugged terrains.
It is commonly used as a direct replacement for the original CDI unit in CG125 motorcycles when the existing unit fails or becomes less efficient over time.
Motorcycle enthusiasts may choose to install a high-performance CG125 CDI to enhance the engine's power and responsiveness, especially when modifying or tuning their bikes.
For motorcycle rental fleets or commercial motorcycle-based services that use CG125 models, the CDI unit is an essential component for routine maintenance to keep the vehicles in good working condition.
In motorcycle repair shops, the CG125 CDI is a frequently stocked item to address ignition-related issues in CG125-series motorcycles.
| Specification Item | Details |
|---|---|
| Operating Voltage | Usually 12V DC (can vary depending on the specific model, some may support AC input from the motorcycle's magneto) |
| Spark Voltage | Generates a spark voltage of approximately 15,000 - 25,000 volts |
| Capacitor Capacity | Typically in the range of 47 - 100 microfarads |
| Operating Temperature Range | -20°C to +80°C |
| Dimensions (approximate) | Length: 60 - 80mm, Width: 30 - 40mm, Height: 20 - 30mm |
| Weight | Around 100 - 150 grams |
| Wiring Harness Connector Type | Specific multi-pin connectors designed to match the CG125 motorcycle's electrical system |
| Certification | May comply with industry standards such as ISO 9001 for quality management and relevant electrical safety standards |
It is an advanced ignition system that stores electrical energy in a capacitor and releases it rapidly through the ignition coil to create a high-voltage spark for fuel ignition inside the engine.
A CDI unit provides a reliable, powerful spark for easier starting (even in cold weather), increases engine combustion efficiency for better fuel economy, and delivers smoother performance across various RPM ranges.
Unlike contact-breaker setups that wear out due to moving mechanical parts, a CDI has no mechanical contacts, which dramatically lowers the risk of component failure and extends the overall lifespan of the ignition system.
Yes, the CG125 CDI is encased in a durable, enclosed plastic or resin housing that resists water splashes, dust, vibrations, and temperature changes ranging from -20°C to +80°C.
The unit normally operates on a 12V DC system (though it can vary by model) and generates a powerful spark output of approximately 15,000 to 25,000 volts.
Yes, the CG125 CDI is commonly used as a direct OEM replacement for worn or failed original units, and it features specific multi-pin connectors designed to align with the CG125 motorcycle's electrical harness.
